Automatic Transfer Switch

Automatic Transfer Switch [Back & T-type]

Facebook   Twitter   Delicious   Google   My EC21   Email this page   Report Item Inquire now
Automatic Transfer Switch [Back & T-type]

Click to enlarge image

 Origin

Korea


Automatic Transfer Switch [Back & T-type]

Character
- Reliable operation with excellent latch mechanism
- Obtaining maximum dynamic performance by using the minimum operating current
- Excellent open/close performance
- Suitable for small, lightweight emergency power supply system
- Transfer function of AC and DC

Characteristics

Rated voltage
AC 600V-DC 125V
Kind of throw
Diuble throw
Connection
Front
Opening time
50 msec
Change-over time
60 msec
Life
Electical1,000Time, mechanical 5,000Time
Switching capacity
1.5le making/1.5le breaking cos Ø=0.95
1.1le making/1.1le breaking L/R=1ms
Switching capacity
6/hour

Type
HK-62T
HK-64T
Rated current (le)
200A
400A
Number of poles
3
4
3
4
Operating Current
AC 100V/110V
15A
15A
AC 200V/220V
7A
7A
DC 100V110V
15A
15A
Rated Short-Time Current (1sec)
2.5kA
2.5kA
Short circuit peak value
5kA
5kA
Weight (kg)
16
16
17.7
20

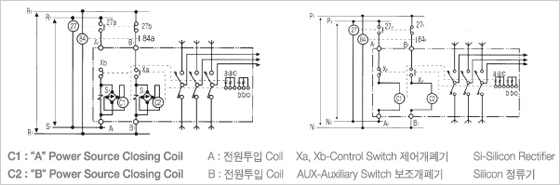

Operating circuit diageam

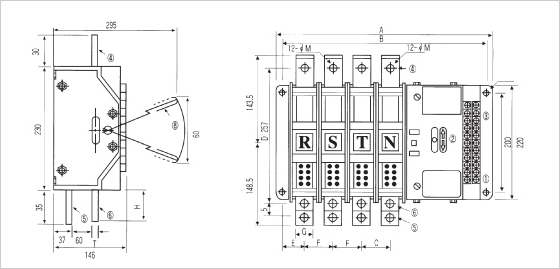

Appearance measurement

1. Operating circuit terminal
2. Manial handle
3. Auxiliary switches
4. A power source side main circuit terminal
5. Load side main circuit terminal
6. B power source side main circuit terminal
7. Cgange over Display

Type
HK-31N
KH-61N
A3
3P
325
355
4P
375
405
B3
3P
305
335
4P
355
385
C
50
55
D
257
257
E
38
43
F
50
60
G
20
30
H
30
30
T
5
6
ØM
Ø9M
Ø11M

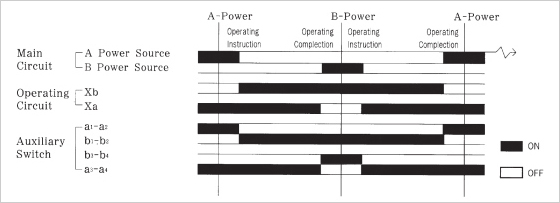

Time chart of contact
